AC Motors

AC Synchronous Motor Schedule

AC Motor Schedule - Unidirectional

Small AC Gearmotor
Small AC Gearmotor

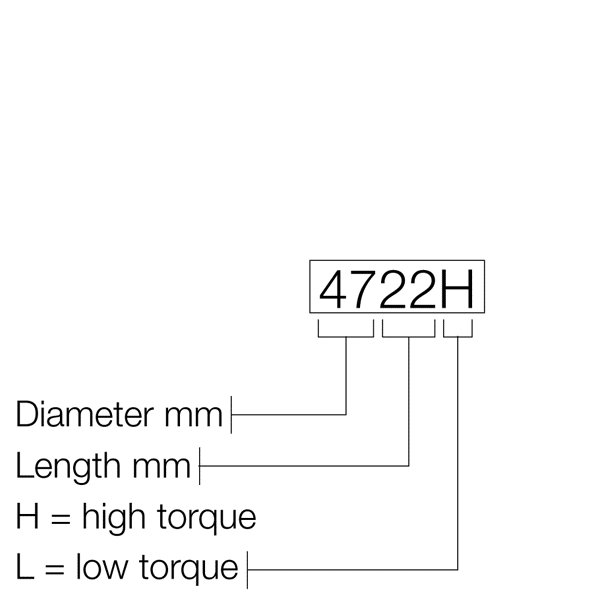

wdt_ID Model Voltage (V) Frequency (Hz) Speed (rpm) Output Power (W) Running Torque (mNm) Rotation Direction Data Sheets

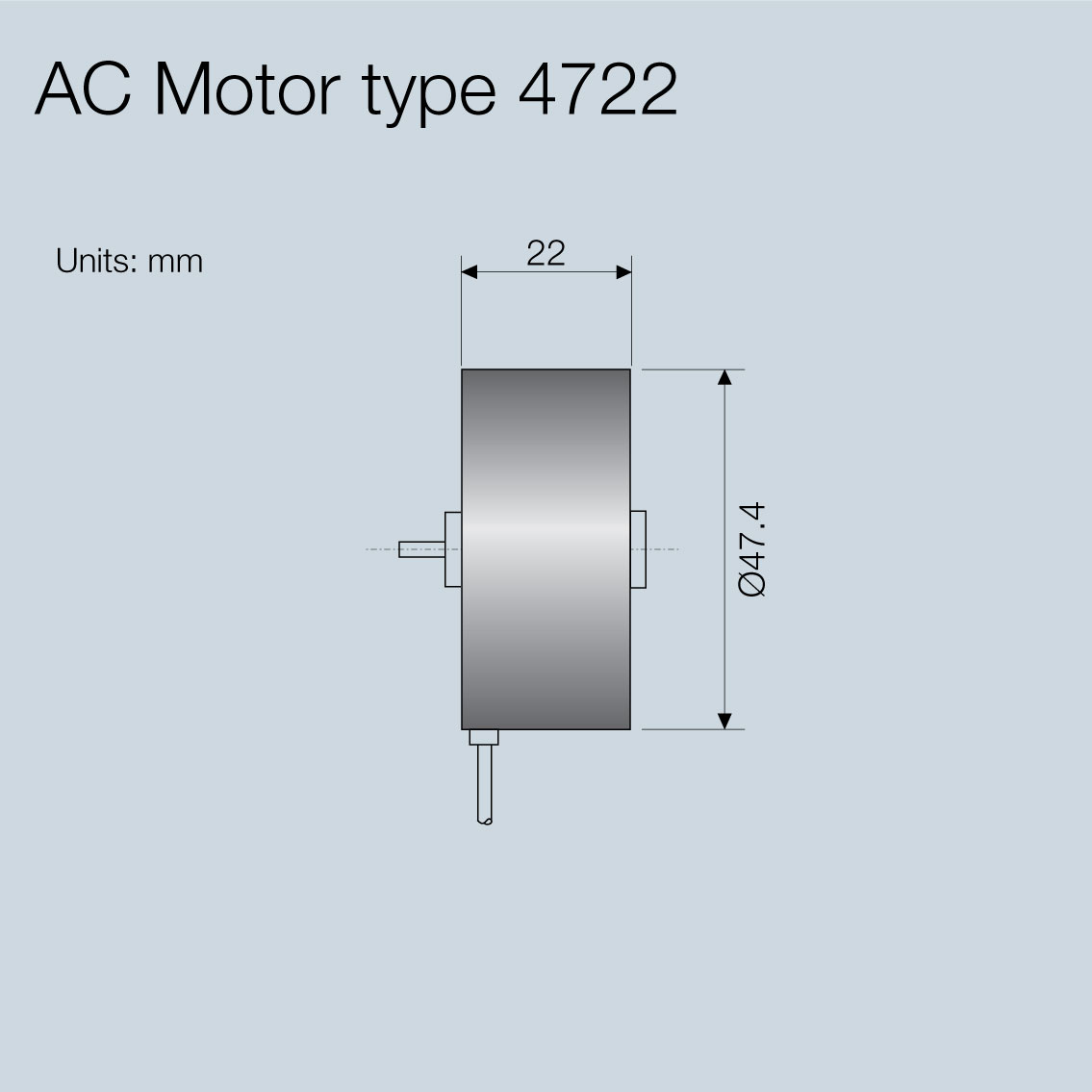

1 4722 12/24/115/230/115-230 50/60 600/720 1.00 16.0 CW / CCW
2 4722H 12/24/115/230/115-230 50/60 600/720 1.38 22.0 CW / CCW
3 4722L 12/24/115/230/115-230 50/60 600/720 0.38 6.0 CW / CCW

AC Motor Schedule - Reversible

Small AC Motor
Small AC Motor
Small AC Motor

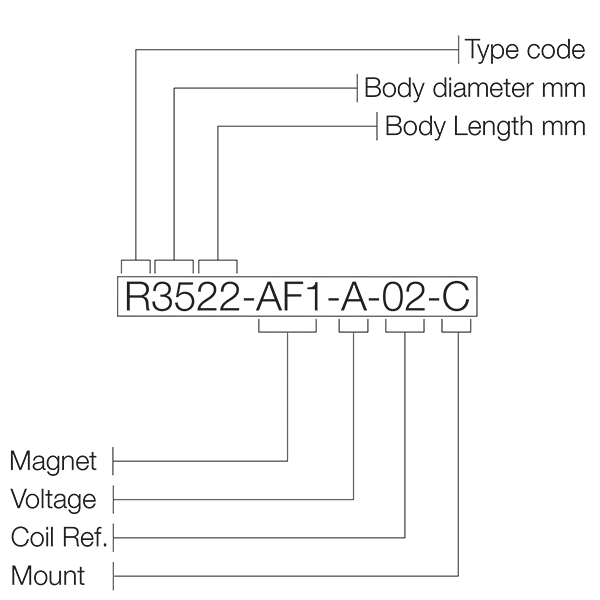

wdt_ID Model Voltage (V) Speed @50Hz (rpm) Output Power (W) Running Torque (mNm) Phasing Capacitor (uF) Data Sheets

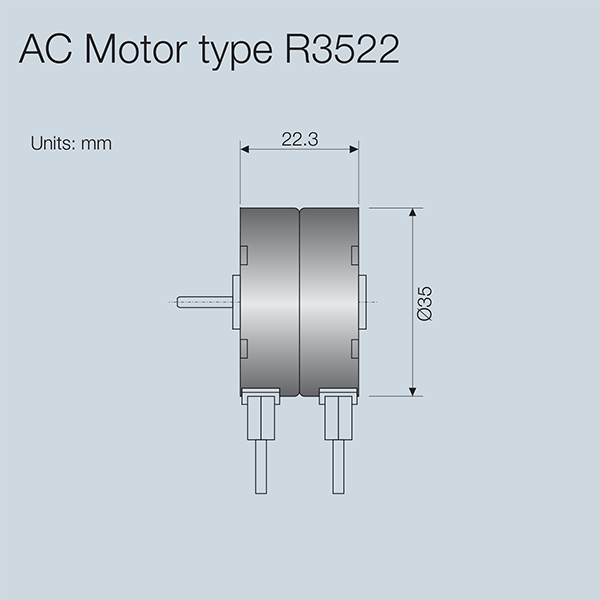

1 R3522-A2A02X 230 250 0.26 10 0.33 (330VAC)
2 R3522-A2B04X 115 250 0.26 11 1.20 (250VAC)

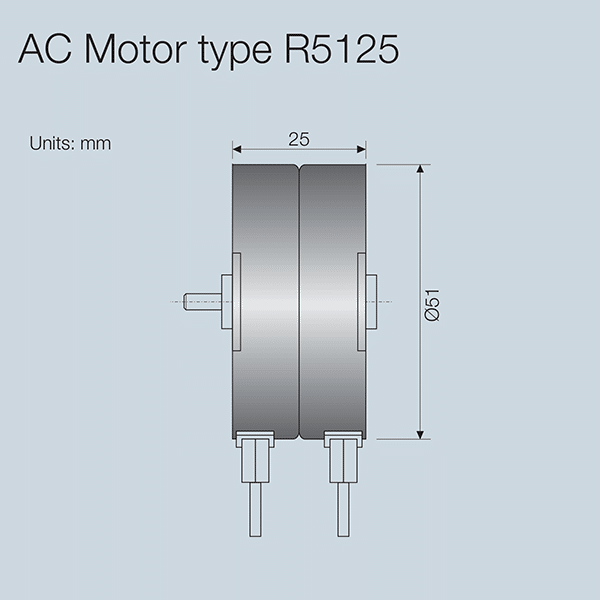

3 R5125-AXA01X 230 250 1.0 35 0.15 (330VAC)
4 R5125-AXB03X 115 250 1.0 35 0.56 (250VAC)
