Cam Timers
For the customer that needs a simple timing/control device we offer this widest range of Cam Timers. Up to eight stations with the choice of either synchronous or intrinsically safe pneumatic motors, both drives have extensive gearbox ratio options. This rugged system gives huge flexibility to the OEM designer.
Cam Timers

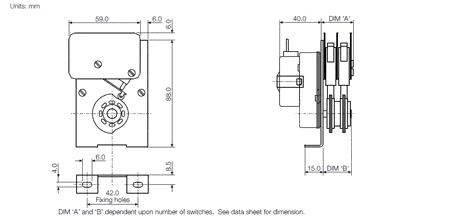

TYPE OEM
Compact electric motor driven interval timer with adjustable cams operating microswitches.
- Electrical supply: 110/240V, 50/60Hz
- Switch rating: 16A 240V change over
- Number switches: 1,2
- Switch connections: .25" spade terminals
- Motor connections: .25" spade terminals
- Cycle times:
- Minutes: 1,2,12*,72*,120
*not available with 60Hz electrical supply.
Cam Timers

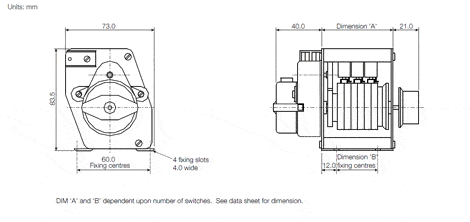

TYPE D63
Electric motor driven sequential timer. Alloy frame, 0.5” hexagon camshaft with adjustable ratchet lock cams operating replaceable microswitches.
- Electrical supply: 110/240V, 50/60Hz
- Switch rating: 16A 240V change over
- Number switches: 2,3,4,5,6
- Switch connections: .25" spade terminals
- Motor connections: .25" spade terminals
- Cycle times:
- Seconds: 6,10,15,20
- Minutes: 1,2,4,6,10,18,20,30
- Hours: 2,4,8,12,16,24
Cam Timers

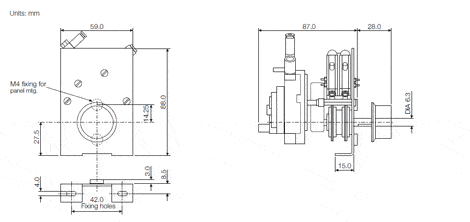

TYPE HSMP2
Pneumatic motor driven handset timer with adjustable cams operating poppet valves.
- Supply pressure: 25 - 100 psi
- Valves: Two x 3 Port Normally Open Poppet valve
- Motor connections: 4mm OD push-on
- Valve connections: 4mm OD push-on
- Cycle times:
- Minutes: 1,4,10
Cam Timers

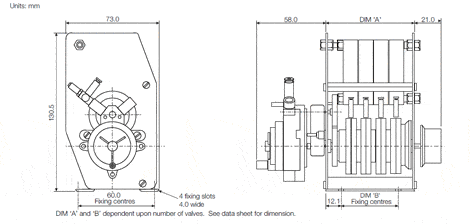

TYPE PN63
Pneumatic motor driven continuously cycling camshaft timer. Alloy frame, 0.5” hexagon camshaft with adjustable ratchet lock cams operating lever activated 3/2 spool valves.
- Supply pressure: 25 - 100 psi
- Valves: KV1643
- Number valves: 2,4,5
- Motor connections: 4mm push-on
- Valve connections: 4mm push in fitting
- Cycle times:
- Minutes: 4,8,10,20
Cam Timers

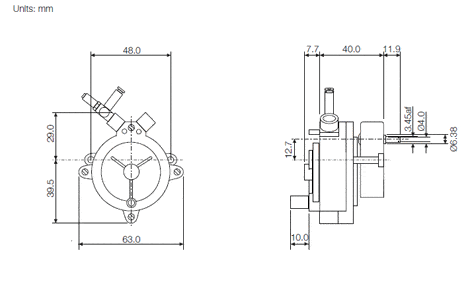

TYPE GMG
Pneumatic driven motor fitted to diecast gearbox. Moulded enclosure with turbine rotor and centrifugal governor. Ideal for hazardous environments.
- Supply pressure 25 - 100 psi
- Motor connections 4mm push-on
- Rotor speed 1200rpm nominal
- Cycle times
- Minutes: 4,6,10,20
- Hours: 1,16
