Gearbox Motor Systems
UK designed and manufactured Motor Gearboxes
Our in house engineering team are on hand to provide technical specifications, drawings and advice to help you develop a perfect solution for your project.
Ideally suited to a wide range of applications
Rotalink Gearboxes
Rotalink gearboxes are rugged, reliable and designed to work seamlessly alongside our electric motors to expand application through torque and capability.
We take pride in our gearboxes which are UK designed and manufactured, with a range including Ovoid and Planetary type gearboxes. Through a wide range of customisation options, our engineering team can provide gearboxes to suit an enormous range of applications.

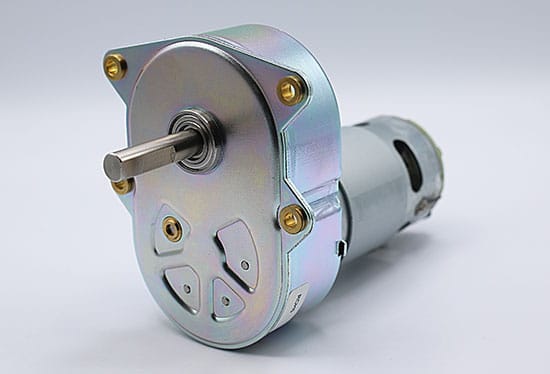

What is a gearbox motor, or gearmotor?
Gearboxes open the door to greater use and maximum efficiency from your electric motor. When paired with a motor, our gearboxes allow you to change the output speed and characteristics to precisely meet the needs of the application.
This is where we find the term 'gearmotor', the combination of an AC or DC electric motor, paired with a reduction gearbox to deliver outstanding torque for its size and weight.
To assist with all customisations, our in house engineering team are on hand to provide technical specifications, drawings and more to help you develop a perfect solution for your project.
Customisation
Gearbox Customisation from Rotalink
Whilst we offer many off-the-shelf gearbox motor combinations, ripe for application in a wide range of sectors, we also pride ourselves on our ability to customise to once more expand the specification of these drive systems.
When it comes to miniature gearbox and gearmotor customisation, we can offer a wide range of options including:
Types of Gearbox

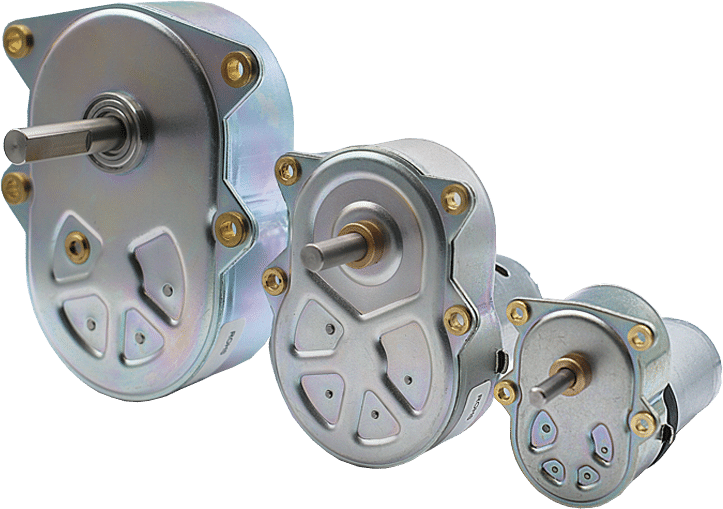

Ovoid Gearboxes
At Rotalink, using advanced polymer materials we have design a range of ovoid gearboxes. Combining spur and planetary gear stages enabled us to produce a gearbox with far greater output torque.
Types of Gearbox

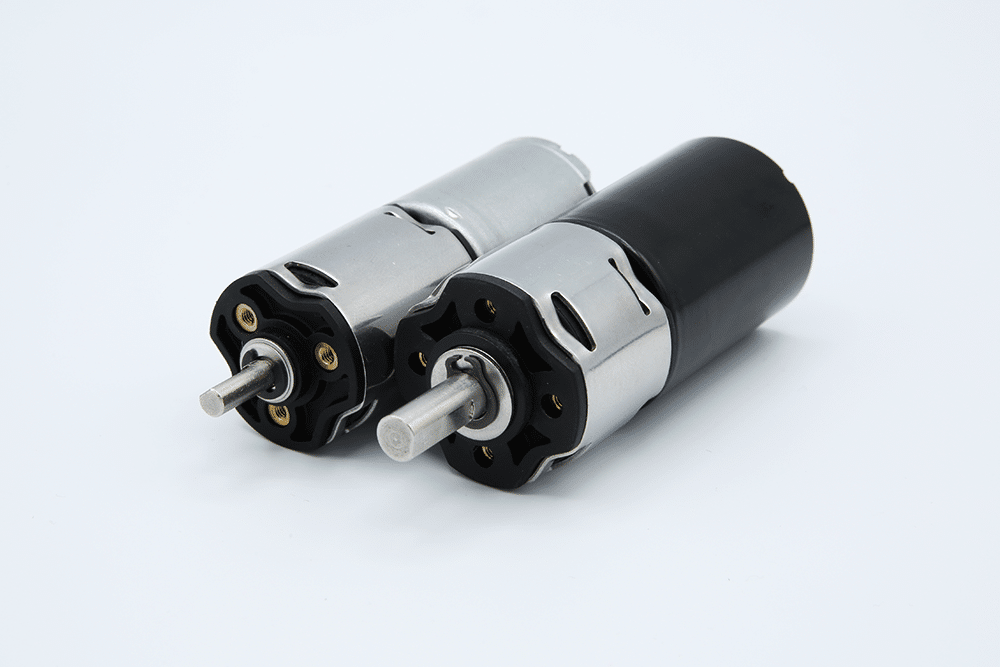

Planetary Gearboxes
A planetary gearbox is a gearbox with the input and output shafts aligned. Planetary gearboxes are used to transfer the largest torque in the most compact of designs.
Gearbox Types
Ovoid Gearboxes
| wdt_ID | Gearbox Type | Max Torque (Nm) | Max Speed (rpm) | Lowest Ratio | Highest Ratio | Gearbox Type | Shaft Diameter (mm) | Shaft Position | Width (mm) | Height (mm) | Depth (mm) | DC Brushed | DC Brushless | Stepper | AC Motors | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 222 | 0.58 | 500 | 7:1 | 1337:1 | Spur | 4 | Offset | 37.24 | 44.6 | 20 | Y | Y | N | N | View |
| 2 | 223 | 0.21 | 500 | 20:1 | 1080000:1 | Spur | 4 | Offset | 56 | 62.8 | 13.6 | Y | Y | Y | Y | View |
| 3 | 225 | 0.5 | 500 | 25:4 | 720000:1 | Spur | 4 or 6 | Offset | 56 | 62.8 | 17.3 | Y | Y | Y | Y | View |
| 4 | 227 | 0.63 | 500 | 25:2 | 18000:1 | Spur | 6 | Offset | 56 | 62.8 | 21.1 | Y | Y | Y | Y | View |
| 5 | 210 | 2.1 | 500 | 26:1 | 4774:1 | Hybrid | 6 | Offset | 37.24 | 44.6 | 20 | Y | Y | N | N | View |
| 6 | 226 | 1.2 | 500 | 25:1 | 30000:1 | Spur | 6 | In Line | 56 | 62.8 | 38.6 | Y | Y | Y | Y | View |
| 7 | 225H | 1.3 | 500 | 16:1 | 186:1 | Spur | 4 or 6 | Offset | 56 | 62.8 | 17.3 | Y | Y | Y | Y | View |
| 8 | 229 | 3 | 500 | 15:1 | 4320:1 | Spur | 6 | Offset | 55.9 | 71.8 | 23.8 | Y | Y | Y | Y | View |
| 9 | 220 | 3 | 500 | 15:1 | 4320:1 | Spur | 6 | Offset | 55.9 | 71.8 | 23.8 | Y | Y | Y | Y | View |
| 10 | 332 | 2.4 | 342 | 5:1 | 1196:1 | Spur | 8 | Offset | 56.3 | 73.9 | 27.5 | Y | Y | Y | Y | View |
Gearbox Types
Planetary Gearboxes
| wdt_ID | Gearbox Type | Max Torque (Nm) | Max Speed (rpm) | Lowest Ratio | Highest Ratio | Shaft Diameter (mm) | Shaft Position | Diameter (mm) | Length (mm) | DC Brushed | DC Brushless | Stepper | AC Motors | Data Sheets |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | PG24-1 Stage | 0.243 | 1500 | 4:1 | N/A | 4 | In Line | 24 | 22.4 | Y | Y | N | N | View |
| 2 | PG24-2 Stage | 0.683 | 538 | 17:1 | 26:1 | 4 | In Line | 24 | 29.3 | Y | Y | N | N | View |
| 3 | PG24-3 Stage | 0.863 | 140 | 64:1 | 156:1 | 4 | In Line | 24 | 36.3 | Y | Y | N | N | View |
| 4 | PG24-4 Stage | 1.2 | 36 | 249:1 | 602:1 | 4 | In Line | 24 | 43.2 | Y | Y | N | N | View |
| 5 | PG24-5 Stage | 0.863 | 6 | 1492:1 | 3610:1 | 4 | In Line | 24 | 50.2 | Y | Y | N | N | View |
| 7 | ||||||||||||||
| 8 | PG28-1 Stage | 0.420 | 1500.0 | 4:1 | N/A | 6 | In Line | 28 | 22.6 | Y | Y | N | N | View |
| 9 | PG28-2 Stage | 0.803 | 490.0 | 18:1 | 24:1 | 6 | In Line | 28 | 30 | Y | Y | N | N | View |
| 10 | PG28-3 Stage | 1.020 | 166.1 | 54:1 | 134:1 | 6 | In Line | 28 | 37.5 | Y | Y | N | N | View |
| 11 | PG28-4 Stage | 1.200 | 46.7 | 193:1 | 337:1 | 6 | In Line | 28 | 44.9 | Y | Y | N | N | View |
| 13 | PG28-5 Stage | 1.390 | 10.9 | 826:1 | 2385:1 | 6 | In Line | 28 | 53.3 | Y | Y | N | N | View |
| 14 | ||||||||||||||
| 15 | PG38-1 Stage | 0.578 | 1500.0 | 23:1 | N/A | 8 | In Line | 38 | 23.1 | Y | Y | N | N | View |
| 16 | PG38-2 Stage | 1.388 | 610.0 | 15:1 | 23:1 | 8 | In Line | 38 | 30.6 | Y | Y | N | N | View |
| 17 | PG38-3 Stage | 1.778 | 170.0 | 53:1 | 125:1 | 8 | In Line | 38 | 38.2 | Y | Y | N | N | View |
| 18 | PG38-4 Stage | 2.250 | 48.0 | 188:1 | 687:1 | 8 | In Line | 38 | 45.7 | Y | Y | N | N | View |
| 19 | PG38-5 Stage | 2.300 | 12.0 | 777:1 | 2374:1 | 8 | In Line | 38 | 53.3 | Y | Y | N | N | View |
