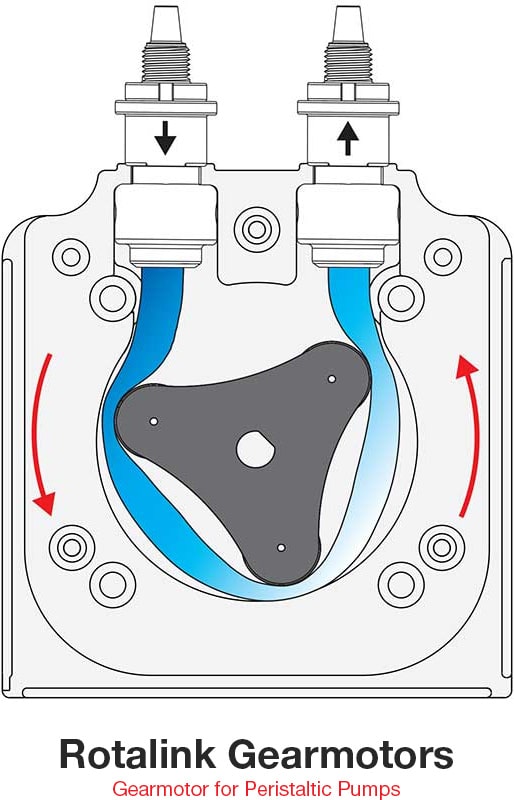

Our technical design team produced a number of key products to be used within a peristaltic pump. A peristaltic pump is one of the most cost-effective methods of pumping liquid. The pump design uses several rollers mounted on a rotor that pinch a tube against the outer casing. As the rotor turns the pinch in the tube moves around, forcing the liquid inside along with it.
Peristaltic pumps have two key principle advantages over other pump technologies. First, their simplicity makes them low-cost. Secondly, the liquid remains inside the tube instead of entering the pump's workings. This makes them perfect for handling abrasive liquids or liquids that need to be kept hygienic.
Rotalink's Solutions

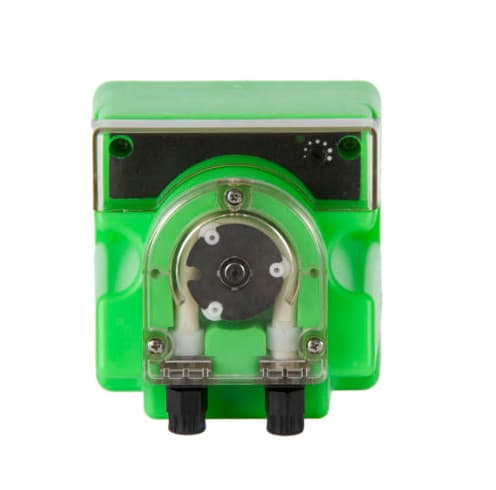

Application 1 - Dosing Systems for Swimming Pools Treatment
For application 1, the most specialised of our major peristaltic pump customers, we produce 4 key products for their system.
Instead of selling their pumps to other manufacturers as self-contained products, they use them to dose water treatment chemicals in systems that keep swimming pools and dishwashers clean. They primarily use AC motors since these tasks call for larger volumes of chemicals to be pumped slowly, making long life necessary.
Product: SP3500
D3857-3250 / 330 62:1 6-24VDC
Product: SP3285
D3650-15185/229 12-32VDC 19:1 SPL SHAFT + BALL BEARINGS
Product: SP3617
D3650-22100VS/332 9-30VDC ~117:1 (315875:2704)
Product: SP3244
4722/225 230V 50HZ 24RPM CW

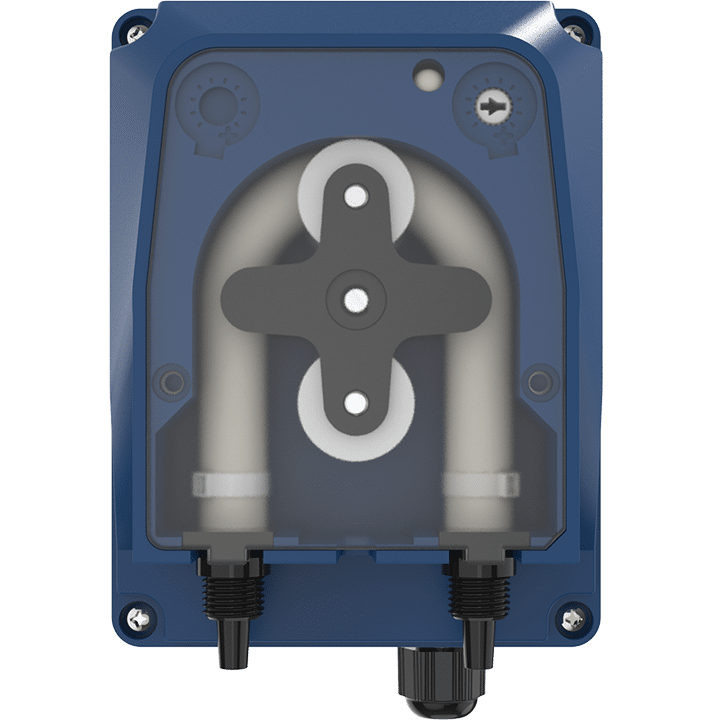

Application 2 - Chemical Dosing Systems and Metering
For application 2, we produce 6 unique gearmotor solutions that are used by world leaders in the peristaltic pump sector. Our client has manufacturing facilities in 7 counties and manufactures over 1,000,000 pieces each year.
Product: SP3459
D2531-09500 / 227 9-30VDC 5000:3
Product: SP3531
SP3531-3/227 9-30VDC 200:3
Product: SP3461
D2531-09500 / 227 9-30VDC 625:6
Product: SP3503
D4566-4050S/360 6-24VDC 51:1
Product: SP3638
D2938-2085/227H 9-30VDC 250:3
Product: SP3499
D2531-09500 / 227 9-30VDC 625:2

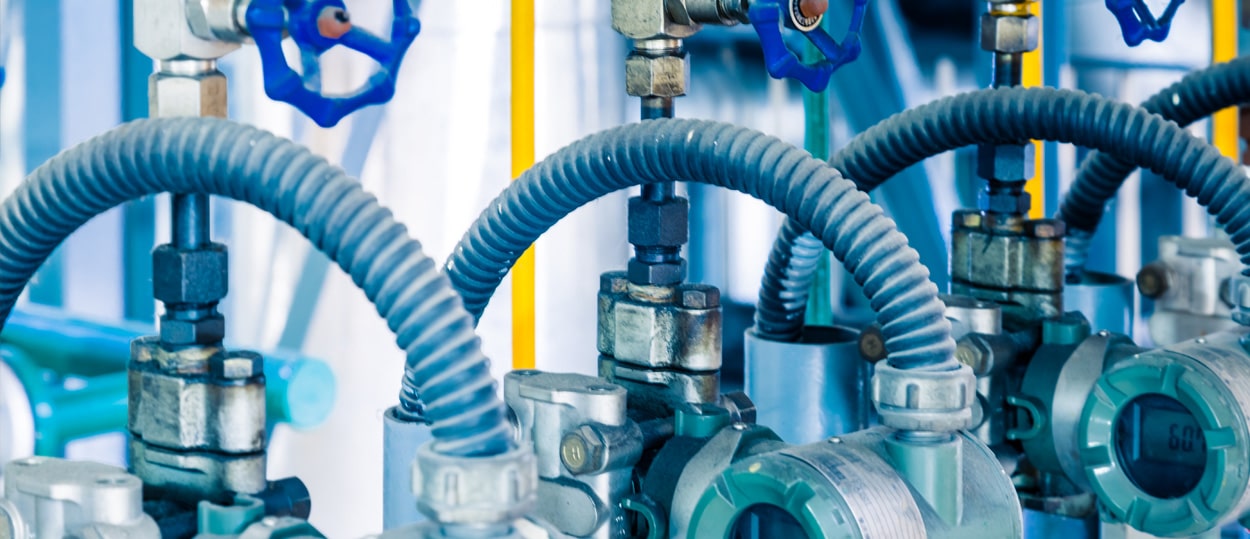

Application 3 - Industrial Pumps
For application 3, is a system designed for a manufacturer of industrial pumps that emphasise ruggedness or complex electronics. Like application 1, they utilse AC motors but their target market is industrial.
Due to this customers wide range of products, we produced 4 unique gearmotors for their smaller range. On the other end of the scale, they have 2 metre wide pumps that weigh as much as a car and is used to pump slurry out of mine shafts.
Product: 25N19/D3221-23150H3E
D3221/225 6VDC 125:1
Product: SP3631
D2838/225 9-30VDC 50:1 + LOOM
Product: SP2427
4722/225 230V 50/60HZ 30/36RPM C SPL
Product: SP3298
4722/225 230V 50/60HZ 4.8/5.7RPM C
Application 4 - Dosing Systems for Water Treatment
Application 4, although for a smaller manufacturer of peristaltic pumps, have products that combine at least one but often several peristaltic pumps with control electronics. These packages are used in large industrial machines of various kinds. Some of them can be controlled over a local area network by a central PC or other programmable controller. To allow such control, they primarily use brushed DC motors.
Product: 29D08/D3650-19135ZM2
D3650-19135/229 12-30VDC 30:1
